HC-sr505: A Complete Guide

Introduction to HC-sr505

The HC-sr505 is a compact, low-power, and easy-to-use motion detector module that utilizes passive infrared (PIR) technology to detect the presence of human or animal movement within its detection range. This versatile sensor is widely used in various applications, such as home automation, security systems, energy management, and interactive projects.

In this comprehensive guide, we will delve into the details of the HC-sr505 motion detector, exploring its features, working principle, applications, and provide a step-by-step guide on how to integrate it into your projects.

How Does the HC-sr505 Work?

PIR Technology

The HC-sr505 motion detector operates based on passive infrared (PIR) technology. PIR sensors detect the infrared radiation emitted by objects in their field of view. Every living being, including humans and animals, emits a small amount of infrared radiation due to their body heat. When an object with a different temperature than the background environment moves in front of the sensor, it triggers a change in the infrared pattern, which is detected by the HC-sr505.

Fresnel Lens

To enhance its detection capabilities, the HC-sr505 employs a Fresnel lens, which is a special type of lens that consists of multiple concentric grooves. The Fresnel lens focuses the infrared radiation onto the sensor, increasing its sensitivity and allowing it to detect motion from a greater distance.

Dual Element Sensor

The HC-sr505 features a dual element sensor, which means it has two separate sensing elements. These elements are connected in a way that they cancel out each other’s signals when the sensor is in a stable state. When an object moves across the sensor’s field of view, it creates a differential change in the infrared pattern, triggering the sensor to detect motion.

HC-sr505 Specifications

Configuring the HC-sr505

The HC-sr505 motion detector module offers two potentiometers for adjusting its sensitivity and output duration.

Sensitivity Adjustment

The sensitivity potentiometer allows you to adjust the detection range of the HC-sr505. By turning the potentiometer clockwise, you increase the sensitivity, enabling the sensor to detect motion from a greater distance. Conversely, turning the potentiometer counterclockwise reduces the sensitivity, limiting the detection range.

It is important to fine-tune the sensitivity based on your specific application requirements. A higher sensitivity may be desirable for larger areas or outdoor applications, while a lower sensitivity can help reduce false triggers in smaller, confined spaces.

Output Duration Adjustment

The output duration potentiometer determines how long the HC-sr505’s output remains active (HIGH) after motion is detected. By default, the output duration is set to approximately 5 seconds. However, you can adjust it by turning the potentiometer.

Turning the potentiometer clockwise increases the output duration, while turning it counterclockwise decreases the duration. The adjustable range is typically between 5 seconds and 300 seconds (5 minutes).

Interfacing HC-sr505 with Arduino

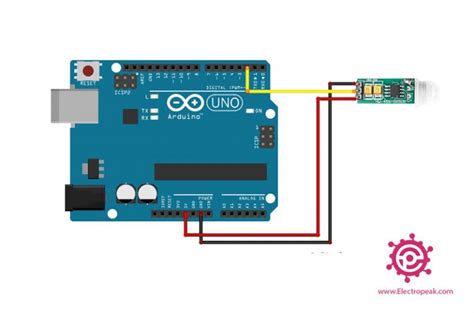

Interfacing the HC-sr505 motion detector with an Arduino is a straightforward process. Follow these steps to set up the connection:

1. Connect the VCC pin of the HC-sr505 to the 5V pin of the Arduino.
2. Connect the GND pin of the HC-sr505 to the GND pin of the Arduino.
3. Connect the OUT pin of the HC-sr505 to any digital input pin of the Arduino (e.g., pin 2).

Here’s a sample Arduino sketch that demonstrates how to read the output of the HC-sr505 and control an LED based on motion detection:

const int motionPin = 2;
const int ledPin = 13;

void setup() {
  pinMode(motionPin, INPUT);
  pinMode(ledPin, OUTPUT);
}

void loop() {
  int motionState = digitalRead(motionPin);

  if (motionState == HIGH) {
    digitalWrite(ledPin, HIGH);
    delay(5000);  // Keep the LED on for 5 seconds
  } else {
    digitalWrite(ledPin, LOW);
  }
}

In this example, when motion is detected, the HC-sr505 outputs a HIGH signal, which is read by the Arduino on the motionPin. The Arduino then turns on the LED connected to ledPin for 5 seconds. After the delay, the LED is turned off until motion is detected again.

Applications of HC-sr505

The HC-sr505 motion detector finds applications in various domains due to its simplicity, reliability, and low power consumption. Some common applications include:

1. Home Automation: The HC-sr505 can be used to automate lighting, air conditioning, or other appliances based on human presence. When motion is detected, the sensor can trigger the desired action, such as turning on the lights or adjusting the thermostat.

2. Security Systems: Motion detectors like the HC-sr505 are essential components in security systems. They can be used to detect unauthorized entry or movement in restricted areas, triggering alarms or sending notifications to the user.

3. Energy Management: By integrating the HC-sr505 into an energy management system, you can optimize power consumption. For example, in an office or public space, the sensor can detect occupancy and automatically control lighting, heating, or cooling systems to save energy when the area is unoccupied.

4. Interactive Projects: The HC-sr505 can add interactivity to various projects, such as art installations, displays, or gaming systems. The sensor can detect the presence or movement of people, triggering specific actions or effects based on the user’s interaction.

5. Robotics: In robotics applications, the HC-sr505 can be used for obstacle detection, collision avoidance, or triggering certain behaviors when motion is detected in the robot’s vicinity.

Frequently Asked Questions (FAQ)

1. What is the detection range of the HC-sr505?
   The HC-sr505 has an adjustable detection range of up to 7 meters. However, the actual range may vary depending on environmental factors and the sensitivity setting.

2. Can the HC-sr505 detect motion through walls or glass?
   No, the HC-sr505 cannot detect motion through solid objects like walls or glass. It relies on direct line-of-sight to detect infrared radiation emitted by moving objects.

3. How can I reduce false triggers from the HC-sr505?
   To minimize false triggers, ensure that the sensor is positioned away from heat sources, air vents, or direct sunlight. Adjust the sensitivity potentiometer to find the optimal setting for your specific environment.

4. Can I use the HC-sr505 outdoors?
   Yes, the HC-sr505 can be used outdoors, but it is recommended to provide proper enclosure and protection from the elements. Extreme temperatures, direct sunlight, or moisture can affect the sensor’s performance.

5. What is the current consumption of the HC-sr505?
   The HC-sr505 has a low current consumption of approximately 50μA in standby mode and 65mA when active (motion detected). This makes it suitable for battery-powered applications.

Conclusion

The HC-sr505 motion detector is a versatile and reliable sensor that offers a simple and effective solution for detecting human or animal movement. With its low power consumption, adjustable sensitivity, and easy integration with microcontrollers like Arduino, the HC-sr505 finds applications in a wide range of projects, from home automation and security systems to interactive installations and robotics.

By understanding the working principle, configuration options, and interfacing techniques covered in this guide, you can confidently incorporate the HC-sr505 into your projects and leverage its capabilities to create innovative and responsive systems.
