Focus on Multi-layer Printed Circuit Boards

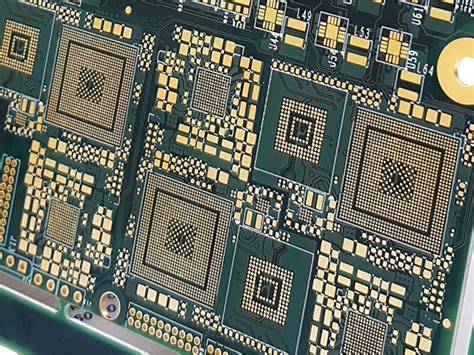

Introduction to Multi-layer PCBs

Multi-layer printed circuit boards (PCBs) are essential components in modern electronics, offering a compact and efficient solution for complex circuitry. These boards consist of multiple layers of conductive material, typically copper, separated by insulating layers. The layers are interconnected through drilled holes called vias, allowing electrical signals to pass between them. Multi-layer PCBs have revolutionized the electronics industry by enabling the creation of smaller, faster, and more reliable devices.

Advantages of Multi-layer PCBs

1. Increased circuit density
2. Improved signal integrity
3. Reduced electromagnetic interference (EMI)
4. Better heat dissipation
5. Enhanced mechanical stability

The Structure of Multi-layer PCBs

Layers in a Multi-layer PCB

A multi-layer PCB typically consists of the following layers:

1. Copper layers for signal routing and power distribution
2. Insulating layers made of materials such as FR-4 or polyimide
3. Solder mask layers to protect the copper traces
4. Silkscreen layers for component labeling and identification

The number of layers in a multi-layer PCB can vary depending on the complexity of the circuit and the specific requirements of the application. Common layer counts include 4, 6, 8, 10, and 12 layers, although boards with up to 50 layers or more are possible for highly complex designs.

Types of Vias in Multi-layer PCBs

Vias are essential for interconnecting the layers in a multi-layer PCB. There are several types of vias used in multi-layer PCB design:

1. Through-hole vias: These vias pass through all layers of the board and are typically used for component mounting or to connect the top and bottom layers.

2. Blind vias: Blind vias start from either the top or bottom layer and terminate at an inner layer, providing a more compact design compared to through-hole vias.

3. Buried vias: Buried vias are located entirely within the inner layers of the board and do not extend to the surface layers. They offer even greater design flexibility and space savings.

4. Microvias: Microvias are small-diameter vias (typically less than 0.15mm) that are used for high-density interconnects, especially in HDI (High-Density Interconnect) PCB designs.

Design Considerations for Multi-layer PCBs

Signal Integrity

Signal integrity is a critical factor in multi-layer PCB design. To maintain good signal integrity, designers must consider the following:

1. Impedance matching: Ensuring that the characteristic impedance of the transmission lines matches the impedance of the source and load to minimize reflections and signal distortion.

2. Crosstalk reduction: Minimizing the coupling between adjacent traces by maintaining appropriate spacing, using guard traces, or employing differential signaling techniques.

3. Stackup design: Optimizing the arrangement of signal, power, and ground layers to minimize noise and ensure proper signal referencing.

Power Distribution Network (PDN)

A well-designed power distribution network is essential for maintaining stable power supply to the components on a multi-layer PCB. Key considerations for PDN design include:

1. Power plane design: Using dedicated power and ground planes to distribute power evenly across the board and minimize voltage drops.

2. Decoupling capacitors: Placing decoupling capacitors close to power-hungry components to suppress high-frequency noise and provide local energy storage.

3. Via placement: Optimizing the placement and size of vias to minimize inductance and ensure a low-impedance path for power delivery.

Thermal Management

As multi-layer PCBs pack more components and features into a smaller space, thermal management becomes increasingly important. To ensure proper heat dissipation, designers can:

1. Use thermal vias: Adding thermal vias near heat-generating components to conduct heat away from the component and into the inner layers or an external heatsink.

2. Incorporate copper pours: Using large areas of copper on the outer layers to spread heat more evenly across the board.

3. Select appropriate materials: Choosing PCB materials with good thermal conductivity, such as metal-core PCBs or high-thermal-conductivity laminates, for applications with demanding thermal requirements.

Manufacturing Process for Multi-layer PCBs

The manufacturing process for multi-layer PCBs involves several steps:

1. Inner layer processing: Each inner layer is patterned and etched individually, with vias drilled as required.

2. Lamination: The inner layers are stacked together with insulating layers (prepregs) between them and bonded under high temperature and pressure.

3. Drilling: Through-holes and vias are drilled through the laminated board.

4. Plating: The drilled holes are plated with copper to create electrical connections between layers.

5. Outer layer processing: The outer layers are patterned and etched, and the solder mask and silkscreen are applied.

6. Surface finish: A surface finish, such as HASL, ENIG, or OSP, is applied to the exposed copper areas to protect them from oxidation and facilitate soldering.

7. Electrical testing: The completed board undergoes electrical testing to ensure proper functionality and connectivity.

Applications of Multi-layer PCBs

Multi-layer PCBs find applications in a wide range of industries and products, including:

1. Consumer electronics: Smartphones, tablets, laptops, and wearables

2. Automotive electronics: Engine control units, infotainment systems, and advanced driver assistance systems (ADAS)

3. Medical devices: Implantable devices, diagnostic equipment, and patient monitoring systems

4. Aerospace and defense: Avionics, satellite systems, and military communications equipment

5. Industrial automation: Programmable logic controllers (PLCs), robotics, and process control systems

Future Trends in Multi-layer PCB Technology

As technology advances, multi-layer PCBs continue to evolve to meet the demands of increasingly complex and miniaturized electronic devices. Some of the future trends in multi-layer PCB technology include:

1. Higher layer counts: The demand for more complex circuits will drive the development of PCBs with even higher layer counts, possibly exceeding 100 layers in the future.

2. Advanced materials: New materials, such as low-loss dielectrics and high-thermal-conductivity laminates, will be developed to improve signal integrity and thermal management in multi-layer PCBs.

3. Embedded components: Integrating passive components, such as resistors and capacitors, directly into the PCB substrate will further increase circuit density and reduce board size.

4. 3D printing: Additive manufacturing techniques, such as 3D printing, may be used to create multi-layer PCBs with complex geometries and unique features that are difficult to achieve with traditional manufacturing methods.

5. Artificial intelligence (AI) in PCB design: AI-driven tools will assist in optimizing multi-layer PCB layouts, identifying potential issues, and suggesting improvements to enhance performance and manufacturability.

Frequently Asked Questions (FAQ)

1. What is the difference between a multi-layer PCB and a single-layer PCB?

A single-layer PCB has only one layer of conductive material, typically copper, on one side of the insulating substrate. In contrast, a multi-layer PCB has multiple layers of conductive material, separated by insulating layers and interconnected through vias. Multi-layer PCBs offer higher circuit density, improved signal integrity, and better EMI performance compared to single-layer PCBs.

2. How many layers can a multi-layer PCB have?

The number of layers in a multi-layer PCB can vary depending on the complexity of the circuit and the specific requirements of the application. Common layer counts include 4, 6, 8, 10, and 12 layers, although boards with up to 50 layers or more are possible for highly complex designs. Some advanced applications may even require PCBs with over 100 layers in the future.

3. What materials are used in the construction of multi-layer PCBs?

Multi-layer PCBs typically use copper for the conductive layers and a variety of insulating materials for the substrate and dielectric layers. Common insulating materials include FR-4, a glass-reinforced epoxy laminate, and polyimide for high-temperature applications. Solder mask and silkscreen layers are also used to protect the copper traces and provide component labeling, respectively.

4. What are the advantages of using blind and buried vias in multi-layer PCBs?

Blind and buried vias offer several advantages in multi-layer PCB design:

1. They enable more compact layouts by freeing up space on the surface layers that would otherwise be occupied by through-hole vias.

2. They can improve signal integrity by reducing the via stub length, which minimizes signal reflections and distortion.

3. They allow for greater design flexibility, as designers can route signals between inner layers without affecting the surface layers.

However, blind and buried vias also increase the complexity and cost of manufacturing compared to through-hole vias.

5. How can designers ensure proper thermal management in multi-layer PCBs?

To ensure proper thermal management in multi-layer PCBs, designers can employ several techniques:

1. Using thermal vias to conduct heat away from heat-generating components and into the inner layers or an external heatsink.

2. Incorporating large areas of copper (copper pours) on the outer layers to spread heat more evenly across the board.

3. Selecting PCB materials with good thermal conductivity, such as metal-core PCBs or high-thermal-conductivity laminates, for applications with demanding thermal requirements.

4. Optimizing component placement and board layout to minimize heat buildup and ensure adequate airflow around critical components.

5. Using thermal simulation tools to analyze the heat distribution and identify potential hot spots during the design phase, allowing for necessary adjustments to be made before manufacturing.

Conclusion

Multi-layer PCBs have become an indispensable part of modern electronics, enabling the creation of smaller, faster, and more reliable devices. By understanding the structure, design considerations, and manufacturing processes involved in multi-layer PCBs, engineers and designers can create innovative solutions that push the boundaries of electronic design. As technology continues to advance, multi-layer PCBs will play an increasingly important role in shaping the future of the electronics industry.
