Conductive Threads: Flexible Electrical Pathways for Smart Textiles

Introduction to Conductive Threads

Conductive threads are innovative materials that combine the flexibility and softness of textiles with the electrical conductivity of metals. These threads, made by coating or embedding conductive materials into traditional textile fibers, have opened up new possibilities in the field of smart textiles and wearable electronics. Conductive threads enable the creation of flexible electrical pathways within fabrics, allowing for the integration of sensors, actuators, and electronic components directly into garments and textile products.

Types of Conductive Threads

There are several types of conductive threads available, each with its own unique properties and manufacturing processes. The most common types include:

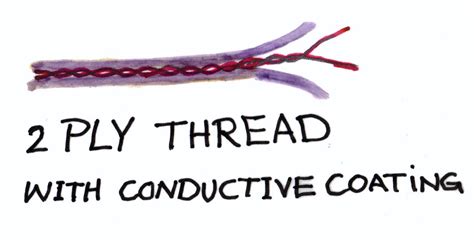

1. Silver-coated threads: These threads are made by coating textile fibers, such as polyester or nylon, with a layer of silver. Silver is an excellent conductor of electricity and provides high conductivity to the threads. Silver-coated threads are widely used in smart textile applications due to their durability and resistance to oxidation.

2. Stainless steel threads: Stainless steel threads are created by twisting fine stainless steel filaments around a core textile fiber. These threads offer good conductivity, strength, and resistance to corrosion. They are often used in applications that require higher durability and washability.

3. Carbon-based threads: Carbon-based threads are made by incorporating carbon nanotubes or graphene into textile fibers. These materials exhibit excellent electrical conductivity and mechanical properties. Carbon-based threads are lightweight and flexible, making them suitable for wearable applications.

4. Copper-based threads: Copper is another highly conductive material used in the production of conductive threads. Copper-based threads can be made by coating textile fibers with copper or by twisting copper filaments around a core fiber. These threads provide high conductivity but may be prone to oxidation over time.

Applications of Conductive Threads in Smart Textiles

Conductive threads have enabled the development of various smart textile applications across different sectors. Some of the key applications include:

Wearable Electronics

Conductive threads have revolutionized the field of wearable electronics by allowing the integration of electronic components directly into garments. By embroidering or weaving conductive threads into fabrics, it becomes possible to create flexible circuits, sensors, and interconnects within clothing. This enables the development of smart garments that can monitor vital signs, track physical activity, provide haptic feedback, or even display information through embedded LEDs.

One notable example of wearable electronics using conductive threads is the development of smart gloves. These gloves incorporate conductive threads to create touch sensors on the fingertips, enabling gesture recognition and control of electronic devices. Smart gloves have applications in virtual reality, gaming, and industrial settings where hands-free control is desired.

Health Monitoring and Medical Textiles

Conductive threads have significant potential in the field of health monitoring and medical textiles. By integrating sensors made from conductive threads into garments, it becomes possible to continuously monitor various physiological parameters such as heart rate, respiratory rate, body temperature, and muscle activity. This real-time data can be wirelessly transmitted to healthcare providers or personal devices for analysis and early detection of health issues.

Medical textiles utilizing conductive threads can also be used for therapeutic purposes. For example, conductive thread-based electrodes can be incorporated into compression garments to provide electrical stimulation for pain relief or muscle rehabilitation. These smart textiles offer a comfortable and non-invasive alternative to traditional medical devices.

Sports and Fitness Apparel

Conductive threads have found applications in the development of smart sports and fitness apparel. By integrating sensors made from conductive threads into athletic clothing, it becomes possible to track various performance metrics such as heart rate, respiration, body temperature, and motion. This data can be used by athletes and coaches to monitor training progress, optimize performance, and prevent injuries.

Smart fitness apparel using conductive threads can also provide real-time feedback and coaching to users. For example, a smart yoga mat incorporating conductive thread-based pressure sensors can detect the user’s posture and provide guidance on correct alignment and form. Similarly, smart running shoes with conductive thread sensors can analyze gait patterns and provide personalized recommendations for improving running technique.

Industrial and Automotive Applications

Conductive threads have potential applications in industrial and automotive settings as well. In the industrial sector, conductive threads can be used to create smart textiles for personal protective equipment (PPE). For example, conductive thread-based sensors can be integrated into safety gloves to detect the presence of hazardous chemicals or extreme temperatures, alerting workers to potential dangers.

In the automotive industry, conductive threads can be used to create smart seating systems that monitor passenger comfort and adjust settings accordingly. Conductive thread-based pressure sensors can detect the distribution of weight on the seat and automatically adjust lumbar support, heating, and cooling to optimize comfort. Additionally, conductive threads can be used to create smart seat belts that detect proper fastening and alert the driver if a passenger is not properly secured.

Challenges and Future Directions

While conductive threads offer exciting possibilities for smart textiles, there are still challenges to be addressed for widespread adoption. Some of the key challenges include:

Durability and Washability

One of the main challenges with conductive threads is ensuring their durability and washability. Repeated stretching, bending, and washing can cause the conductive coating or filaments to degrade over time, leading to a loss of conductivity. Researchers are working on developing more robust conductive thread materials and encapsulation techniques to improve their longevity and washability.

Integration with Traditional Textile Manufacturing

Integrating conductive threads into traditional textile manufacturing processes can be challenging. The production of smart textiles often requires specialized equipment and techniques to ensure proper alignment and connectivity of conductive threads. Collaboration between textile manufacturers and electronics experts is crucial for developing scalable and cost-effective production methods for smart textiles.

Standardization and Interoperability

As the field of smart textiles evolves, there is a need for standardization and interoperability among different conductive thread-based systems. Establishing common protocols and interfaces will enable seamless integration of smart textile components from various manufacturers, promoting innovation and market growth.

Power Management and Energy Harvesting

Powering smart textiles and wearable electronics remains a challenge, especially for long-term use. Researchers are exploring various power management techniques, such as energy-efficient circuit design and low-power communication protocols, to extend battery life. Additionally, the integration of energy harvesting technologies, such as solar cells or piezoelectric materials, into conductive thread-based systems is being investigated to enable self-powered smart textiles.

Frequently Asked Questions (FAQ)

1. What are conductive threads made of?
   Conductive threads are typically made by coating or embedding conductive materials, such as silver, stainless steel, carbon, or copper, into textile fibers like polyester or nylon.

2. How do conductive threads enable smart textiles?
   Conductive threads enable the creation of flexible electrical pathways within fabrics, allowing for the integration of sensors, actuators, and electronic components directly into garments and textile products. This enables the development of smart textiles that can sense, respond, and communicate with the user and the environment.

3. Can conductive threads be washed?
   Yes, many conductive threads are designed to withstand multiple washing cycles. However, the durability and washability of conductive threads can vary depending on the specific material and manufacturing process used. It is important to follow the care instructions provided by the manufacturer to ensure the longevity of the conductive threads.

4. Are conductive threads safe to wear?
   Conductive threads are generally safe to wear when properly integrated into textile products. However, it is important to ensure that the conductive threads are adequately insulated and protected from direct skin contact to avoid any potential electrical hazards. Proper design and manufacturing practices should be followed to ensure the safety of smart textiles incorporating conductive threads.

5. What are some examples of products that use conductive threads?
   Conductive threads are used in a wide range of smart textile products, such as smart gloves for gesture recognition, health monitoring garments for tracking vital signs, therapeutic textiles for pain relief and rehabilitation, smart sports apparel for performance tracking, and industrial safety gloves for detecting hazardous conditions. As the field of smart textiles continues to evolve, we can expect to see more innovative products leveraging the capabilities of conductive threads.

Conclusion

Conductive threads have emerged as a key enabler for the development of smart textiles and wearable electronics. By combining the flexibility and comfort of textiles with the electrical conductivity of metals, conductive threads allow for the creation of seamless and responsive garments and textile products. From health monitoring and fitness tracking to industrial safety and automotive applications, conductive threads have the potential to revolutionize various sectors.

However, challenges such as durability, washability, and integration with traditional textile manufacturing processes need to be addressed for the widespread adoption of conductive thread-based smart textiles. Ongoing research and collaboration between textile experts, electronics engineers, and material scientists are crucial for overcoming these challenges and unlocking the full potential of conductive threads.

As the field of smart textiles continues to evolve, we can expect to see more innovative applications and products that leverage the unique properties of conductive threads. With the increasing demand for personalized, connected, and responsive textile products, conductive threads are poised to play a significant role in shaping the future of smart textiles and wearable technology.
