CD4049: The Features, Applications, and Circuit Diagram

Introduction to the CD4049 Hex Inverting Buffer IC

The CD4049, also known as the HEF4049B or MC14049B, is a high-speed CMOS hex inverting buffer integrated circuit. This versatile IC is widely used in various electronic applications due to its ability to invert logic levels, provide buffering, and drive high-capacitive loads. In this article, we will explore the features, applications, and circuit diagram of the CD4049 IC.

Key Features of the CD4049

1. CMOS technology: The CD4049 is fabricated using Complementary Metal-Oxide-Semiconductor (CMOS) technology, which offers low power consumption and high noise immunity.
2. Six independent inverters: The IC contains six identical inverters, each with a single input and output, allowing for multiple logic operations within a single package.
3. High-speed operation: With a typical propagation delay of 60 ns, the CD4049 is suitable for high-speed digital circuits.
4. Wide supply voltage range: The IC can operate with a supply voltage ranging from 3 V to 15 V, making it compatible with various power supply configurations.
5. High output drive capability: Each inverter can drive up to 10 LSTTL loads or 50 pF capacitive loads, ensuring reliable signal transmission.
6. High input impedance: The CD4049 features a high input impedance (typically 1012 Ω), minimizing loading effects on the driving circuit.
7. Schmitt-trigger action: The inverters exhibit Schmitt-trigger action, providing hysteresis and improved noise immunity.

Pin Configuration and Function Table

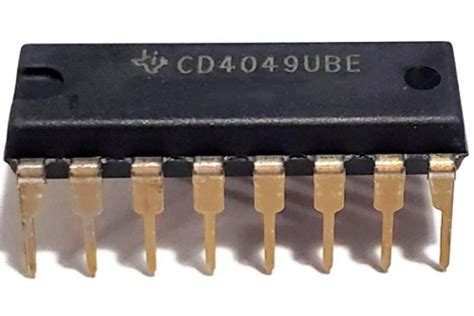

The CD4049 IC comes in a 16-pin Dual In-Line Package (DIP). The pin configuration and function table are as follows:

Logic Diagram and Truth Table

The logic diagram of the CD4049 illustrates the six independent inverters within the IC. Each inverter has a single input (A) and output (Y). The truth table for an inverter is as follows:

Applications of the CD4049

The CD4049 finds use in a wide range of electronic applications, including:

1. Logic level conversion: The CD4049 can be used to convert logic levels between different voltage standards, such as converting 5 V TTL signals to 3.3 V CMOS signals.

2. Signal conditioning: The inverters can be used to condition signals by removing noise, reshaping waveforms, or providing hysteresis.

3. Oscillator circuits: By connecting an RC network between the input and output of an inverter, the CD4049 can be used to create simple oscillator circuits.

4. Delay circuits: The propagation delay of the inverters can be utilized to create delay circuits or one-shot Pulse Generators.

5. Driving LEDs and small loads: The high output drive capability of the CD4049 makes it suitable for directly driving LEDs or small loads without the need for additional driver circuits.

6. Schmitt Triggers: The built-in Schmitt-trigger action of the inverters can be used to implement Schmitt triggers, providing noise immunity and signal conditioning.

7. Frequency dividers: By cascading multiple inverters and utilizing their propagation delay, the CD4049 can be used to create frequency dividers.

8. Level shifters: The CD4049 can be used as a level shifter to interface between circuits operating at different voltage levels.

9. Inverting buffers: The inverters serve as inverting buffers, providing signal isolation and driving capability.

10. Pulse generators: By combining the inverters with RC networks, the CD4049 can be used to generate pulses of desired widths and frequencies.

Circuit Diagram and Example Applications

Inverting Buffer Circuit

One of the simplest applications of the CD4049 is as an inverting buffer. The circuit diagram for an inverting buffer using a single inverter is shown below:

         VDD
          |
          |
     +----+----+
     |    1    |
     |    |    |
Input|----+----|Input  Output|----+-----Output
     |         |             |    |
     |         |             |    |
     +---------+             +----+
          |
          |
         GND

In this configuration, the input signal is inverted and buffered by the inverter, providing a clean and inverted output signal.

Oscillator Circuit

The CD4049 can be used to create a simple oscillator circuit by connecting an RC network between the input and output of an inverter. The circuit diagram for a CD4049-based oscillator is shown below:

         VDD
          |
          |
     +----+----+
     |    1    |
     |    |    |
     +----+----|Input  Output|----+-----Output
     |    |    |             |    |
     |    +----+-------------+    |
     |    |                       |
     |    |                       |
     |   --- C                    |
     |    |                       |
     |    |                       |
     |    +----+                  |
     |         |                  |
     +---------+                  |
          |                       |
          |                       |
         GND                     GND

The oscillation frequency depends on the values of the resistor R and capacitor C. The frequency can be calculated using the formula:

f = 1 / (2.2 * R * C)

Schmitt Trigger Circuit

The built-in Schmitt-trigger action of the CD4049 inverters can be used to implement a Schmitt trigger circuit. The circuit diagram for a CD4049-based Schmitt trigger is shown below:

         VDD
          |
          |
     +----+----+
     |    1    |
     |    |    |
Input|----+----|Input  Output|----+-----Output
     |         |             |    |
     |         |             |    |
     +---------+             +----+
          |
          |
         GND

The Schmitt trigger provides hysteresis, which helps to eliminate noise and prevent multiple triggering in the presence of slowly changing input signals.

Frequently Asked Questions (FAQ)

1. Q: What is the difference between the CD4049 and the CD4069?
   A: The CD4049 and CD4069 are both hex inverting buffer ICs, but the CD4049 has Schmitt-trigger action on the inputs, while the CD4069 does not. The CD4049 is better suited for noisy environments or slowly changing input signals.

2. Q: Can the CD4049 be used with a 3.3 V power supply?
   A: Yes, the CD4049 can operate with a supply voltage ranging from 3 V to 15 V. It is compatible with 3.3 V power supply systems.

3. Q: How many loads can each inverter in the CD4049 drive?
   A: Each inverter in the CD4049 can drive up to 10 LSTTL loads or 50 pF capacitive loads. This high output drive capability allows the IC to directly drive LEDs or small loads without additional driver circuits.

4. Q: Can the CD4049 be used as a level shifter?
   A: Yes, the CD4049 can be used as a level shifter to interface between circuits operating at different voltage levels. By connecting the input to one voltage level and the output to another, the CD4049 can convert the logic levels accordingly.

5. Q: What is the typical propagation delay of the CD4049?
   A: The typical propagation delay of the CD4049 is 60 ns. This high-speed operation makes it suitable for use in various digital circuits and applications requiring fast signal processing.

Conclusion

The CD4049 hex inverting buffer IC is a versatile and widely used component in electronic circuits. With its six independent inverters, high-speed operation, wide supply voltage range, and high output drive capability, the CD4049 finds application in logic level conversion, signal conditioning, oscillators, delay circuits, and more.

By understanding the features, pin configuration, logic diagram, and example applications of the CD4049, designers can effectively utilize this IC in their projects. Whether it’s creating simple inverting buffers, oscillators, or Schmitt triggers, the CD4049 offers a reliable and efficient solution.

When designing circuits with the CD4049, it’s essential to consider factors such as supply voltage, load requirements, and signal characteristics to ensure optimal performance. By following the provided circuit diagrams and understanding the IC’s capabilities, engineers and hobbyists can harness the full potential of the CD4049 in their electronic designs.
