Anti lock braking system schematics

Introduction to ABS schematics

Anti-lock braking systems (ABS) are a critical safety feature in modern vehicles. ABS prevents the wheels from locking up during heavy braking, allowing the driver to maintain steering control and reducing stopping distance. Understanding the schematics and components that make up an ABS system is important for automotive engineers, technicians, and enthusiasts.

In this article, we will dive deep into ABS schematics, examining the key components, their functions, and how they work together to provide safe and effective braking performance. We’ll also explore some common ABS schematic layouts and troubleshooting tips.

PCBassembly.com/contact/” style=”border-radius:32px” data-wpel-link=”internal”>Request PCB Manufacturing & Assembly Quote Now

Key Components of an ABS System

An anti-lock braking system consists of several essential components that work in unison to monitor and control brake application. Here are the main elements found in a typical ABS schematic:

1. Wheel Speed Sensors

Wheel speed sensors are located at each wheel and measure the rotational speed of the tire. They provide vital input to the ABS control module. There are two main types of wheel speed sensors:

Sensor Type	Description
Active	Contains a built-in power source, typically a magnet and coil. Generates its own AC voltage signal.
Passive	Relies on electromagnetic induction from a rotating toothed wheel to generate an AC voltage signal.

The wheel speed sensor sends a signal to the control module with a frequency proportional to wheel speed. The ABS controller uses this data to determine if a wheel is about to lock up during braking.

2. ABS Control Module

The ABS control module, also known as the ABS controller or ECU (electronic control unit), is the brain of the anti-lock braking system. It constantly receives and processes data from the wheel speed sensors and other inputs to make decisions about brake pressure modulation.

Key functions of the ABS control module include:
– Monitoring wheel speed sensor signals
– Calculating wheel slip and deceleration rates
– Activating and deactivating hydraulic valves to adjust brake pressure
– Communicating with other vehicle systems (e.g. traction control, stability control)
– Storing diagnostic trouble codes for system issues

The control module uses complex algorithms to determine when to intervene and modulate brake pressure to prevent wheel lockup. It can make adjustments multiple times per second for optimal performance.

3. Hydraulic Valves

Hydraulic valves are responsible for regulating the brake fluid pressure delivered to each wheel cylinder or caliper. In an ABS system, there are typically two types of valves for each wheel:

Valve Type	Function
Inlet	Controls the flow of high-pressure fluid from the master cylinder to the wheel brakes. Normally open.
Outlet	Controls the release of fluid pressure from the wheel brakes back to the reservoir or accumulator. Normally closed.

By rapidly opening and closing these valves, the ABS controller can increase, hold, or decrease brake pressure at individual wheels to prevent lockup. The valves are typically solenoid-operated and respond to electrical signals from the control module.

4. Hydraulic Pump and Motor

The hydraulic pump and motor work together to provide high-pressure fluid to the ABS valves during operation. When the controller detects a wheel slipping, it activates the pump motor, which drives the pump to boost fluid pressure.

The pump is typically a piston-type design, similar to the vehicle’s power steering pump. It draws fluid from the reservoir and pressurizes it, making it available to the inlet valves as needed. The motor is usually an electric DC type, controlled by the ABS module.

5. Accumulator

The accumulator is a small pressure vessel that stores hydraulic fluid under pressure for the ABS system. Its main functions are:
– Providing a readily available source of high-pressure fluid for the ABS valves during operation
– Absorbing pressure pulsations and damping noise from the pump and valves
– Acting as a reservoir for excess fluid released by the outlet valves

The accumulator helps ensure consistent and responsive ABS performance by maintaining stable fluid pressure within the system.

How ABS Works: A Step-by-Step Overview

Now that we’ve covered the key components, let’s walk through how an anti-lock braking system operates from the driver pressing the brake pedal to the controlled stop. Here’s a step-by-step breakdown:

The driver applies pressure to the brake pedal.
The master cylinder converts pedal force into hydraulic pressure, sending fluid to the wheel brakes.
As the brakes are applied, the wheel speed sensors monitor each wheel’s rotational speed and send signals to the ABS control module.
The control module continuously calculates the slip rate and deceleration of each wheel based on the sensor data.
If the controller detects a wheel is about to lock up (indicated by rapid deceleration), it quickly closes the inlet valve and opens the outlet valve for that wheel.
With the inlet closed and outlet open, brake fluid pressure at the wheel is reduced, preventing lockup.
The pump motor is activated, and the pump starts drawing fluid from the reservoir and pressurizing the accumulator.
As the wheel begins to rotate again, the controller closes the outlet valve and opens the inlet valve, reapplying brake pressure.
This cycle of rapid pressure modulation continues until the vehicle comes to a stop or the driver releases the brake pedal.
Throughout the process, the controller can modulate each wheel independently, optimizing braking performance and stability.

By rapidly cycling the valves and adjusting brake pressure, ABS maintains the wheels at the threshold of traction, providing the shortest stopping distance while preserving steering control. The driver may feel a pulsing sensation in the brake pedal during ABS activation—this is normal and indicates the system is functioning properly.

Common ABS Schematic Layouts

While the basic principles of anti-lock braking systems are consistent, there can be variations in the schematic layout and configuration of components. Here are a few common ABS schematic designs:

Four-Channel, Four-Sensor ABS

In this configuration, each wheel has its own dedicated speed sensor and pair of hydraulic valves (inlet and outlet). This allows the ABS controller to modulate brake pressure at each wheel independently for optimal performance. Four-channel, four-sensor systems are commonly found on high-end vehicles and offer the most precise control.

Three-Channel, Four-Sensor ABS

A three-channel, four-sensor ABS uses four wheel speed sensors but only three sets of hydraulic valves. The front wheels each have their own dedicated channel, while the rear wheels share a single channel. This means the rear wheels’ brake pressure is modulated together. This configuration is a cost-effective compromise, providing good performance for most driving situations.

One-Channel, One-Sensor ABS

The simplest ABS layout uses a single wheel speed sensor (usually on the rear axle) and one set of hydraulic valves to modulate brake pressure for all four wheels simultaneously. While this system is less precise than multi-channel designs, it still provides a significant safety advantage over non-ABS brakes. One-channel, one-sensor ABS is typically found on entry-level vehicles or older models.

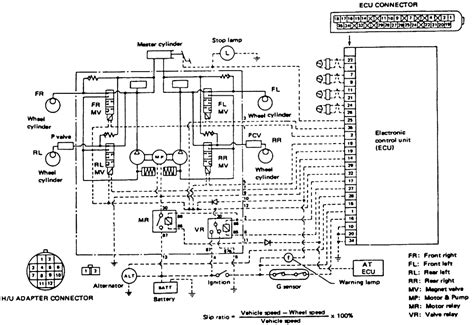

ABS Schematic Symbols and Nomenclature

When reading ABS schematics, it’s important to understand the common symbols and nomenclature used. Here are some key terms and their abbreviations:

ECU: Electronic Control Unit (ABS control module)
WSS: Wheel Speed Sensor
IV: Inlet Valve
OV: Outlet Valve
HCU: Hydraulic Control Unit (incorporates valves, pump, and accumulator)
MC: Master Cylinder
TB: Tandem Booster
FL, FR, RL, RR: Front Left, Front Right, Rear Left, Rear Right (wheel positions)

Hydraulic lines are typically represented by solid lines, while electrical connections are shown as dashed or dotted lines. Arrows indicate the direction of fluid or signal flow. Valves are often depicted as circles with crescent-shaped symbols inside, indicating their open or closed state.

Troubleshooting ABS Issues

Like any complex system, ABS can occasionally experience issues that impact braking performance or trigger warning lights. Here are some common problems and diagnostic tips:

ABS Warning Light On

If the ABS warning light is illuminated on the dashboard, it indicates a fault has been detected in the system. The first step in diagnosis is to scan for trouble codes using an OBD-II scanner or dedicated ABS diagnostic tool. Common causes include:

Faulty wheel speed sensor or wiring
Low brake fluid level
Malfunctioning hydraulic valve or pump
Control module issues

Retrieve any stored trouble codes and consult the vehicle’s service manual for specific diagnostic procedures and wiring diagrams.

Uneven or Pulsating Brake Pedal

If the brake pedal feels uneven or pulsates during normal braking (without ABS activation), it could indicate an issue with the hydraulic components or brake system. Possible causes include:

Contaminated or depleted brake fluid
Sticking or faulty valves
Air in the brake lines
Worn or warped brake rotors

A thorough inspection of the braking system, including bleeding the lines and checking for leaks, can help pinpoint the problem.

Extended Stopping Distance

If the vehicle takes longer than normal to stop, even with ABS functioning, there may be an issue with the brake system or tires. Potential factors include:

Worn brake pads or rotors
Incorrect tire pressure or worn tread
Brake fluid leak or low fluid level
Malfunctioning proportioning valve

Inspect the brake components and tires for wear or damage, and check the brake fluid level and condition. Road test the vehicle to assess braking performance and ABS function.

Frequently Asked Questions

1. Can I drive with the ABS light on?

While it is possible to drive with the ABS light illuminated, it is not recommended. An illuminated ABS light indicates a fault in the anti-lock braking system, which may impair braking performance and safety. The vehicle’s normal brakes should still function, but without the added benefits of ABS. It’s best to have the issue diagnosed and repaired as soon as possible.

2. How often should I have my ABS system inspected?

It’s a good idea to have your ABS system inspected during regular brake service intervals, typically every 30,000 to 50,000 miles or as recommended by your vehicle’s manufacturer. This usually coincides with brake fluid changes and other routine brake maintenance. However, if you notice any warning lights, unusual noises, or changes in braking performance, have the system inspected immediately.

3. Can I replace just one wheel speed sensor?

While it is technically possible to replace just one wheel speed sensor, it is often recommended to replace them in pairs (front or rear) or as a complete set. This ensures even wear and optimal performance across all sensors. Additionally, if one sensor has failed, the others may be nearing the end of their service life as well.

4. What should I do if my ABS activates unexpectedly?

If your ABS activates unexpectedly or in normal driving conditions, it could indicate a problem with the system. Check for any warning lights on the dashboard and have the system scanned for trouble codes. Possible causes include faulty wheel speed sensors, wiring issues, or a malfunctioning control module. Have the vehicle inspected by a qualified technician to diagnose and resolve the issue.

5. Can I install an ABS system on an older vehicle?

Retrofitting an older vehicle with a modern ABS system is a complex and expensive process. It requires significant modifications to the brake system, wiring harness, and other components. In most cases, it is not practical or cost-effective to install ABS on a vehicle that did not originally come equipped with it. If you’re concerned about braking performance, upgrading to modern brake pads, rotors, and tires can provide improved stopping power and control.

Conclusion

Anti-lock braking systems are a critical safety feature in modern vehicles, helping drivers maintain control and reduce stopping distances in emergency situations. By understanding ABS schematics, components, and operation, technicians and enthusiasts can better diagnose and maintain these complex systems.

Remember, regular inspection and servicing of your vehicle’s ABS is essential for ensuring optimal performance and safety. If you encounter any warning lights, unusual symptoms, or changes in braking behavior, have the system checked by a qualified professional as soon as possible.

With proper care and maintenance, your vehicle’s ABS will continue to provide reliable, responsive braking performance for years to come, helping keep you and your passengers safe on the road.
