Introduction to AM Radio and Receiver Circuits
AM (Amplitude Modulation) radio is one of the oldest forms of radio broadcasting still in use today. AM radio operates in the medium frequency (MF) band from 525 kHz to 1705 kHz. In AM transmission, the amplitude of a constant frequency carrier wave is varied in proportion to the message signal, while the frequency remains constant.
An AM Receiver Circuit is designed to detect and demodulate these amplitude variations, extracting the original audio signal that was used to modulate the carrier wave at the transmitter. The basic components of an AM receiver include:
- Antenna
- RF amplifier
- Local oscillator
- Mixer
- IF amplifier
- Detector
- Audio amplifier
In this article, we will delve into the working principles of an AM receiver circuit and guide you through the process of building a simple AM receiver project.
How an AM Receiver Circuit Works
RF Amplifier and Tuning Stage
The AM signal picked up by the antenna is first fed into the RF (Radio Frequency) amplifier stage. This stage is responsible for amplifying the weak signal received by the antenna and also provides some initial frequency selectivity. The tuning stage, which usually consists of a variable capacitor and an inductor (LC circuit), helps in selecting the desired AM station by resonating at the frequency of the selected station.
Local Oscillator and Mixer
The local oscillator generates a high-frequency signal that is typically 455 kHz above the frequency of the desired AM station. This signal is mixed with the amplified RF signal in the mixer stage. The mixer produces two output frequencies: one equal to the sum of the input frequencies (RF + LO) and another equal to the difference between the input frequencies (LO – RF). The difference frequency, which is always 455 kHz, is called the Intermediate Frequency (IF).
IF Amplifier and Detector
The IF signal is further amplified by the IF amplifier stage, which provides most of the receiver’s gain and selectivity. After amplification, the IF signal is fed into the detector stage, which extracts the audio signal from the amplitude variations of the IF signal. The most common type of detector used in AM receivers is the diode detector, which consists of a diode, a capacitor, and a resistor.
Audio Amplifier
The recovered audio signal from the detector is weak and needs to be amplified before it can drive a speaker or headphones. This is achieved by the audio amplifier stage, which boosts the signal to a sufficient level to drive the output device.
Building a Simple AM Receiver Circuit
Now that we have a basic understanding of how an AM receiver works, let’s build a simple AM receiver circuit using readily available components.
Components Required
Component | Quantity |
---|---|
Ferrite rod antenna | 1 |
Variable capacitor (50-200 pF) | 1 |
AM RF coil (for desired frequency range) | 1 |
IN34A germanium diode | 1 |
47 kΩ resistor | 1 |
100 nF ceramic capacitor | 1 |
10 nF ceramic capacitor | 1 |
1 kΩ resistor | 1 |
100 µF electrolytic capacitor | 1 |
LM386 audio amplifier IC | 1 |
8Ω speaker or headphones | 1 |
9V battery and connector | 1 |
Breadboard and jumper wires | 1 |
Circuit Diagram

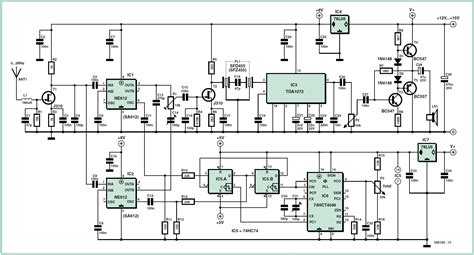

[Insert a clear circuit diagram of the simple AM receiver using the components listed above]
Step-by-Step Instructions
-
Begin by winding the ferrite rod antenna. Wind approximately 50-60 turns of enameled copper wire around the ferrite rod, leaving a few centimeters of wire free at each end for connections.
-
Connect one end of the ferrite rod antenna to the variable capacitor and the other end to the AM RF coil. The variable capacitor and RF coil form the tuning stage of the receiver.
-
Connect the other end of the RF coil to the anode (positive side) of the IN34A germanium diode. The cathode (negative side) of the diode is connected to ground.
-
Connect the 47 kΩ resistor between the anode of the diode and ground. This resistor acts as the load for the diode detector.
-
Connect the 100 nF ceramic capacitor in parallel with the 47 kΩ resistor. This capacitor helps to filter out the high-frequency components from the detected audio signal.
-
Connect the positive end of the 10 nF ceramic capacitor to the junction of the diode and the 47 kΩ resistor. The negative end of this capacitor is connected to the positive input (pin 3) of the LM386 audio amplifier IC.
-
Connect the 1 kΩ resistor between the positive input (pin 3) and the negative input (pin 2) of the LM386 IC. This resistor sets the gain of the amplifier.
-
Connect the 100 µF electrolytic capacitor between the positive supply (pin 6) and ground (pin 4) of the LM386 IC. This capacitor provides power supply filtering and stability.
-
Connect the output (pin 5) of the LM386 IC to one terminal of the 8Ω speaker or headphones. Connect the other terminal of the speaker or headphones to the positive supply (pin 6) of the IC.
-
Finally, connect the positive terminal of the 9V battery to the positive supply (pin 6) of the LM386 IC and the negative terminal of the battery to ground.
-
Your simple AM receiver circuit is now complete! Adjust the variable capacitor to tune into different AM stations.
![](https://prototypepcbassembly.com/wp-content/uploads/2024/03/rayming-pcb-manufacturing-and-asssembly.jpg)
Troubleshooting and Improvements
If your AM receiver is not working as expected, consider the following troubleshooting tips:
- Double-check all your connections to ensure they are correct and secure.
- Verify that your components are functioning properly by testing them individually.
- Adjust the position and orientation of the ferrite rod antenna to improve signal reception.
- Experiment with different values of the load resistor and Filter capacitor in the detector stage to optimize audio quality.
To further enhance the performance of your AM receiver, you can try the following modifications:
- Add a simple RF amplifier stage before the detector to improve sensitivity and selectivity.
- Use a more sophisticated audio amplifier circuit to improve sound quality and volume.
- Implement an automatic gain control (AGC) circuit to maintain a constant output level despite variations in the strength of the received signal.
FAQ
1. What is the purpose of the ferrite rod antenna in the AM receiver circuit?
The ferrite rod antenna is used to pick up the incoming AM radio signals. The high permeability of the ferrite material allows the antenna to be compact while still providing good signal reception.
2. Why is a germanium diode used in the detector stage instead of a silicon diode?
Germanium diodes have a lower forward voltage drop compared to silicon diodes, which makes them more suitable for detecting weak AM signals. The lower voltage drop ensures that even small amplitude variations in the signal can be detected efficiently.
3. Can I use a different audio amplifier IC instead of the LM386?
Yes, you can use other audio amplifier ICs, such as the TDA2003 or the TBA820M, depending on your specific requirements and available components. Make sure to refer to the datasheet of the chosen IC for the correct pin configuration and circuit design.
4. What is the purpose of the variable capacitor in the tuning stage?
The variable capacitor, along with the AM RF coil, forms an LC tuned circuit that resonates at the frequency of the desired AM station. By adjusting the capacitance of the variable capacitor, you can change the resonant frequency of the tuned circuit and select different AM stations.
5. Can this simple AM receiver circuit be used for FM reception as well?
No, this circuit is designed specifically for AM reception and cannot be used for FM reception. FM radio uses a different modulation technique (frequency modulation) and requires a different type of receiver circuit, typically involving a discriminator or ratio detector stage.
Conclusion
In this article, we explored the working principles of an AM receiver circuit and provided a step-by-step guide to building a simple AM receiver using readily available components. By understanding the role of each stage in the receiver and experimenting with different modifications, you can further enhance the performance of your AM receiver project.
Remember, building radio circuits is not only a fun and educational hobby but also helps to develop a deeper understanding of the principles of electrical and electronic engineering. So, go ahead and start exploring the fascinating world of AM radio!
