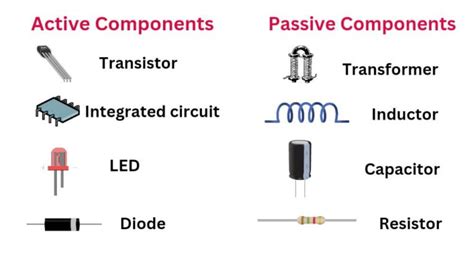

Active & Passive Components

What are Active Components?

Active components are electronic devices that have the ability to control and amplify electrical signals. They require an external power source to function and can introduce gain or directionality to a circuit. Active components play a vital role in signal processing, amplification, and switching applications.

Characteristics of Active Components

1. Power Source Dependency: Active components rely on an external power source, such as a battery or power supply, to operate effectively.
2. Signal Amplification: Active components can amplify weak electrical signals, increasing their strength and power.
3. Directionality: Active components can introduce directionality to a circuit, allowing signals to flow in a specific direction while blocking signals in the opposite direction.
4. Non-Linear Behavior: Active components exhibit non-linear behavior, meaning their output is not directly proportional to their input.
5. Gain: Active components can provide gain, which is the ratio of the output signal to the input signal.

Types of Active Components

Transistors

Transistors are the most common and versatile active components. They are semiconductor devices that can amplify, switch, and control electrical signals. Transistors come in two main types:

1. Bipolar Junction Transistors (BJTs): BJTs are current-controlled devices that consist of three regions: emitter, base, and collector. They are used for amplification and switching applications.
2. Field-Effect Transistors (FETs): FETs are voltage-controlled devices that rely on an electric field to control the flow of current. They are known for their high input impedance and are commonly used in switching and amplification circuits.

Integrated Circuits (ICs)

Integrated circuits are miniaturized electronic circuits that contain a large number of transistors, resistors, and other components on a single semiconductor chip. ICs come in various types, such as:

1. Operational Amplifiers (Op-amps): Op-amps are high-gain amplifiers that perform mathematical operations on electrical signals. They are used in signal conditioning, filtering, and amplification applications.
2. Microcontrollers: Microcontrollers are small computers on a single IC that contain a processor, memory, and input/output peripherals. They are used for embedded systems and control applications.
3. Digital Logic Gates: Digital logic gates perform Boolean logic operations on binary signals. They are the building blocks of digital circuits and are used in computers, digital electronics, and digital signal processing.

Diodes

Diodes are two-terminal semiconductor devices that allow current to flow in only one direction. They are used for rectification, protection, and signal conditioning. Common types of diodes include:

1. Rectifier Diodes: Rectifier diodes convert alternating current (AC) to direct current (DC). They are used in power supplies and chargers.
2. Zener Diodes: Zener diodes are used for voltage regulation and protection. They maintain a constant voltage across their terminals when operated in reverse bias.
3. Light-Emitting Diodes (LEDs): LEDs emit light when current flows through them. They are used for lighting, displays, and indicators.

Applications of Active Components

Active components find applications in a wide range of electronic systems, including:

1. Amplifiers: Active components, such as transistors and op-amps, are used to amplify weak signals in audio systems, communication devices, and measurement instruments.
2. Switching Circuits: Transistors and digital logic gates are used in switching circuits to control the flow of electrical signals. They are found in digital systems, such as computers and digital communication devices.
3. Power Supplies: Active components, such as rectifier diodes and voltage regulators, are used in power supplies to convert AC to DC and regulate voltage levels.
4. Signal Processing: Op-amps and other active components are used in signal processing circuits to filter, condition, and manipulate electrical signals.
5. Control Systems: Microcontrollers and other active components are used in control systems to monitor and regulate various processes, such as temperature control, motor control, and automation.

What are Passive Components?

Passive components are electronic devices that do not require an external power source to operate. They do not introduce gain or directionality to a circuit and are used for various functions, such as energy storage, signal filtering, and impedance matching.

Characteristics of Passive Components

1. No Power Source Dependency: Passive components do not rely on an external power source to function. They operate based on the electrical signals passing through them.
2. Linear Behavior: Passive components exhibit linear behavior, meaning their output is directly proportional to their input.
3. No Gain: Passive components do not provide gain or amplification to a signal. They can only attenuate or filter signals.
4. Bidirectional: Passive components allow electrical signals to flow in both directions, unless specifically designed to limit directionality (e.g., polarized capacitors).
5. Energy Storage and Dissipation: Some passive components, such as capacitors and inductors, can store and release electrical energy, while others, like resistors, dissipate energy as heat.

Types of Passive Components

Resistors

Resistors are two-terminal components that oppose the flow of electric current. They are used to control current, divide voltage, and provide impedance matching. Resistors come in various types, such as:

1. Fixed Resistors: Fixed resistors have a constant resistance value and are used for general-purpose applications.
2. Variable Resistors: Variable resistors, such as potentiometers and rheostats, allow for adjustable resistance values. They are used for volume control, dimming, and calibration.
3. Thermistors: Thermistors are temperature-sensitive resistors whose resistance changes with temperature. They are used for temperature sensing and compensation.

Capacitors

Capacitors are two-terminal components that store electrical energy in an electric field. They are used for energy storage, signal filtering, and timing applications. Capacitors come in various types, including:

1. Ceramic Capacitors: Ceramic capacitors are made from ceramic dielectric materials and are known for their high stability and low cost. They are used for decoupling, filtering, and general-purpose applications.
2. Electrolytic Capacitors: Electrolytic capacitors have a high capacitance value per unit volume and are polarized. They are commonly used in power supply filtering and coupling applications.
3. Film Capacitors: Film capacitors use plastic film as the dielectric material and offer high stability and low losses. They are used in precision filtering and timing applications.

Inductors

Inductors are two-terminal components that store electrical energy in a magnetic field. They are used for energy storage, signal filtering, and impedance matching. Inductors come in different forms, such as:

1. Air Core Inductors: Air core inductors have no core material and are used for high-frequency applications.
2. Ferrite Core Inductors: Ferrite core inductors use ferrite material as the core, which increases their inductance and reduces losses. They are used in power supplies and EMI suppression.
3. Toroidal Inductors: Toroidal inductors have a donut-shaped core and offer high inductance and low electromagnetic interference (EMI). They are used in power supplies and filters.

Transformers

Transformers are passive components that transfer electrical energy between two or more circuits through electromagnetic induction. They are used for voltage and current transformation, isolation, and impedance matching. Transformers consist of two or more coils of wire wound around a common core.

Applications of Passive Components

Passive components find applications in various electronic systems, including:

1. Filters: Passive components, such as resistors, capacitors, and inductors, are used to construct filters that remove unwanted frequencies from a signal. They are used in audio systems, communication devices, and power supplies.
2. Impedance Matching: Passive components are used for impedance matching, which ensures maximum power transfer between different stages of a circuit. This is important in RF and audio applications.
3. Energy Storage: Capacitors and inductors are used for energy storage in power supplies, voltage regulators, and switching circuits.
4. Voltage Division: Resistors are used in voltage divider circuits to create reference voltages or to reduce voltage levels.
5. Coupling and Decoupling: Capacitors are used for AC coupling and decoupling, which separates DC and AC components of a signal or removes noise from power supply lines.

Comparison between Active and Passive Components

FAQs

1. Q: Can a circuit function without active components?
   A: Yes, a circuit can function without active components if it only requires passive functions such as voltage division, filtering, or impedance matching. However, for amplification, switching, or signal processing, active components are necessary.

2. Q: What is the main difference between a transistor and a resistor?
   A: A transistor is an active component that can amplify and switch electrical signals, while a resistor is a passive component that opposes the flow of electric current. Transistors require an external power source to function, whereas resistors do not.

3. Q: Can passive components store energy?
   A: Yes, certain passive components, such as capacitors and inductors, can store electrical energy in electric and magnetic fields, respectively. Capacitors store energy in an electric field, while inductors store energy in a magnetic field.

4. Q: What is the role of a transformer in a circuit?
   A: A transformer is a passive component that transfers electrical energy between two or more circuits through electromagnetic induction. It is used for voltage and current transformation, isolation, and impedance matching.

5. Q: How do active and passive components work together in a circuit?
   A: Active and passive components complement each other in a circuit. Passive components perform functions such as filtering, energy storage, and impedance matching, while active components provide amplification, switching, and signal processing capabilities. Together, they enable the desired functionality of the electronic system.

Conclusion

Active and passive components are the fundamental building blocks of electronic circuits. Active components, such as transistors, integrated circuits, and diodes, require an external power source and introduce gain and directionality to a circuit. They are essential for signal amplification, switching, and processing applications.

On the other hand, passive components, including resistors, capacitors, inductors, and transformers, do not require an external power source and exhibit linear behavior. They are used for energy storage, signal filtering, impedance matching, and voltage division.

Understanding the characteristics, types, and applications of active and passive components is crucial for designing and analyzing electronic circuits. By leveraging the unique properties of each component and combining them effectively, engineers can create complex electronic systems that perform a wide range of functions, from simple signal conditioning to advanced digital signal processing.

As technology continues to evolve, the development of new materials and manufacturing techniques will lead to further advancements in active and passive components. Miniaturization, integration, and improved performance will shape the future of electronics, enabling more compact, efficient, and powerful devices that revolutionize various industries, including telecommunications, computing, automotive, and healthcare.

In conclusion, active and passive components are the unsung heroes of the electronic world, working tirelessly behind the scenes to make modern technology possible. By mastering the concepts and applications of these components, engineers and enthusiasts can unlock the full potential of electronic circuits and contribute to the ongoing innovation in the field of electronics.
