What is a Flasher Circuit?
A flasher circuit is an electronic circuit that generates a periodic on-off signal, causing a connected load (such as a light or LED) to flash at a specific frequency. The main purpose of a flasher circuit is to create a visual indication or warning signal by repeatedly turning a light source on and off.
Flasher circuits find applications in various fields, including:
- Automotive: Turn signals, hazard lights, and brake lights
- Safety equipment: Emergency vehicles, warning signs, and beacons
- Decorative lighting: Christmas lights, party decorations, and novelty items
Components of a Flasher Circuit
To create a flasher circuit, you will need the following components:
- Transistors: Used as switches to control the current flow to the load
- Resistors: Limit the current and set the flashing frequency
- Capacitors: Store electrical charge and help determine the flashing rate
- Diodes: Protect the circuit from reverse voltage and provide isolation
- Load: The device that will be flashing, such as a light bulb or LED
Transistors
Transistors are the heart of a flasher circuit, acting as electronic switches that control the flow of current to the load. In most cases, bipolar junction transistors (BJTs) are used, specifically NPN and PNP types. The transistor’s base terminal is connected to a timing circuit, which determines when the transistor switches on and off.
| Transistor Type | Description |
|---|---|
| NPN | Conducts when the base is positive with respect to the emitter |
| PNP | Conducts when the base is negative with respect to the emitter |
Resistors
Resistors play a crucial role in limiting the current flow and setting the flashing frequency in a flasher circuit. The values of the resistors are chosen based on the desired flashing rate and the specifications of the transistors and load.
| Resistor Function | Description |
|---|---|
| Base resistor | Limits the current flowing into the transistor’s base |
| Collector resistor | Limits the current flowing through the transistor and the load |
| Timing resistor | Works with the timing capacitor to determine the flashing frequency |
Capacitors
Capacitors store electrical charge and work with the timing resistor to create the oscillating signal that drives the transistor switch. The time constant, determined by the values of the timing resistor and capacitor, sets the flashing frequency.
| Capacitor Type | Description |
|---|---|
| Timing capacitor | Works with the timing resistor to set the flashing frequency |
| Decoupling capacitor | Filters out noise and stabilizes the power supply |
Diodes
Diodes are used in flasher circuits to provide protection against reverse voltage and to isolate different parts of the circuit. They ensure that current flows only in the desired direction and prevent damage to the components.
| Diode Function | Description |
|---|---|
| Reverse voltage protection | Prevents damage from reversed power supply polarity |
| Isolation | Prevents unwanted interaction between different circuit sections |
Load
The load in a flasher circuit is the device that will be flashing, such as a light bulb or LED. The load’s power rating and voltage requirements must be considered when designing the circuit to ensure proper operation and avoid damage.
Types of Flasher Circuits
There are several types of flasher circuits, each with its own unique characteristics and applications. Some common types include:
Astable Multivibrator
An astable multivibrator is a simple two-transistor oscillator circuit that generates a continuous square wave output. The flashing frequency is determined by the values of the timing resistors and capacitors connected to the transistors’ base terminals.

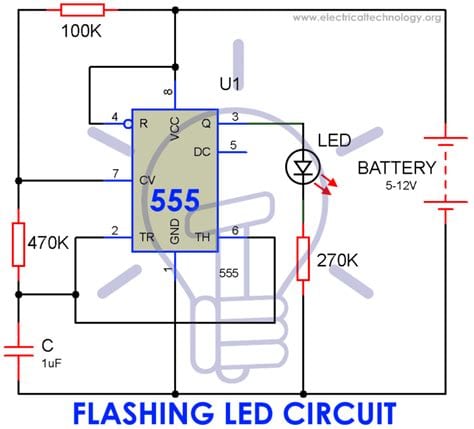

555 Timer-Based Flasher
The 555 timer IC is a versatile chip that can be configured as a flasher circuit. By connecting the appropriate resistors and capacitors to the timer’s pins, you can create a stable and adjustable flashing frequency. This type of flasher is popular due to its simplicity and reliability.
Relay-Based Flasher
A relay-based flasher uses an electromechanical relay to switch the load on and off. The relay is controlled by a transistor circuit that oscillates at the desired flashing frequency. Relay-based flashers are often used in high-current applications, such as automotive turn signals.
Microcontroller-Based Flasher
For more advanced flasher circuits with programmable patterns and multiple outputs, a microcontroller can be used. By writing custom firmware, you can create complex flashing sequences and control multiple loads independently. This type of flasher offers the greatest flexibility but requires programming skills.
Designing a Flasher Circuit
To design your own flasher circuit, follow these steps:
- Determine the load: Choose the type of load (light bulb, LED, etc.) and its power requirements.
- Select the transistors: Based on the load current and voltage, choose appropriate NPN and/or PNP transistors.
- Calculate the resistor values: Use the Transistor Datasheets and desired flashing frequency to determine the values of the base, collector, and timing resistors.
- Choose the capacitors: Select the timing capacitor value based on the desired flashing frequency and the timing resistor value. Use decoupling capacitors as needed.
- Add protection diodes: Include reverse voltage protection and isolation diodes where necessary.
- Create the schematic: Using the selected components, draw the flasher circuit schematic.
- Build and test: Assemble the circuit on a breadboard or PCB and test its operation, making adjustments as needed.
Flasher Circuit Diagram Example
Here’s a simple astable multivibrator flasher circuit diagram using NPN transistors:
[Insert circuit diagram image here]
Components:
– Q1, Q2: 2N2222 NPN transistors
– R1, R2: 1kΩ base resistors
– R3, R4: 10kΩ collector resistors
– C1, C2: 100μF timing capacitors
– D1, D2: 1N4148 isolation diodes
– LED1, LED2: Light-emitting diodes
– R5, R6: 330Ω current-limiting resistors for LEDs
This circuit will flash the LEDs alternately at a frequency determined by the values of the timing resistors (R3, R4) and capacitors (C1, C2). The flashing rate can be adjusted by changing these values.
Troubleshooting Flasher Circuits
If your flasher circuit isn’t working as expected, consider the following troubleshooting tips:
- Check the power supply: Ensure that the circuit is receiving the correct voltage and polarity.
- Verify component values: Double-check that the resistors and capacitors are the correct values and are connected properly.
- Inspect the solder joints: Look for cold solder joints or short circuits that may be causing issues.
- Test the transistors: Use a multimeter to check the transistors for proper functionality and pinout.
- Observe the waveforms: Use an oscilloscope to view the signals at various points in the circuit, helping to identify the source of the problem.
Frequently Asked Questions (FAQ)
-
Q: Can I use a flasher circuit with any type of load?
A: Flasher circuits can be designed to work with various loads, such as incandescent bulbs, LEDs, and even small motors. However, it’s essential to consider the load’s power requirements and choose the appropriate components to handle the current and voltage. -
Q: How do I change the flashing frequency of my flasher circuit?
A: The flashing frequency is determined by the values of the timing resistors and capacitors. To change the frequency, you can adjust these values according to the formula: f = 1 / (1.4 × R × C), where f is the frequency, R is the timing resistor value, and C is the timing capacitor value. -
Q: Can I control multiple loads with a single flasher circuit?
A: Yes, you can design a flasher circuit to control multiple loads by using additional transistors and current-limiting resistors for each load. Alternatively, you can use a microcontroller-based flasher to independently control multiple outputs. -
Q: What should I do if my flasher circuit is drawing too much current?
A: If your flasher circuit is drawing excessive current, it may be due to incorrect component values or a short circuit. Double-check your schematic and component connections, and ensure that the transistors and resistors are rated for the expected current. You may need to use higher-wattage resistors or heat sinks for the transistors. -
Q: Can I power my flasher circuit from a battery?
A: Yes, flasher circuits can be powered by batteries as long as the battery voltage is compatible with the circuit components. Keep in mind that the battery life will depend on the current draw of the circuit and the capacity of the battery. For long-term use, consider using rechargeable batteries or an external power supply.
Conclusion
Flasher circuits are versatile and essential components in many electronic applications, from automotive systems to decorative lighting. By understanding the basic principles and components of flasher circuits, you can design and build your own circuits to suit your specific needs. This article has provided you with the knowledge and tools to create a flasher circuit diagram, troubleshoot common issues, and expand your electronics skills. So go ahead, experiment, and let your creativity shine with the power of flasher circuits!
