What are PCB Breakaway Tabs?

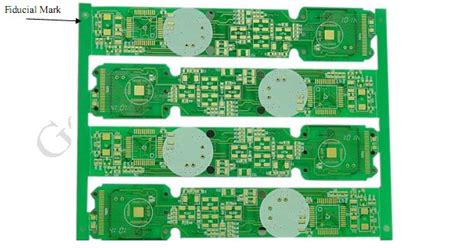

PCB breakaway tabs, also known as mouse bites, snap-apart tabs, or castellated edges, are a type of PCB panelization technique used to maximize the number of printed circuit boards that can be manufactured on a single panel. The process involves creating small, perforated tabs along the edges of individual PCBs, allowing them to be easily separated from the main panel after the manufacturing process is complete.
Advantages of using PCB breakaway tabs
-
Cost-effective: By maximizing the number of PCBs on a single panel, manufacturers can reduce material waste and production time, resulting in lower costs for the end-user.
-
Ease of separation: The perforated tabs allow for easy separation of individual PCBs from the main panel, without the need for specialized tools or equipment.
-
Versatility: PCB breakaway tabs can be used with a variety of PCB sizes and shapes, making them a flexible solution for many applications.
-
Improved efficiency: By streamlining the manufacturing process, PCB breakaway tabs can help improve overall production efficiency and reduce lead times.
How are PCB breakaway tabs created?
PCB breakaway tabs are typically created using one of two methods: mouse bites or V-grooves.
Mouse bites
Mouse bites are small, circular perforations that are drilled or routed along the edges of individual PCBs. These perforations are typically arranged in a line, creating a weak point that allows the PCBs to be easily snapped apart by hand or with minimal force.
| Advantage | Disadvantage |
|---|---|
| Easy to create | Can leave rough edges |
| Suitable for most PCB thicknesses | May require additional processing for a clean edge |
| Cost-effective | Not suitable for high-density designs |
V-grooves
V-grooves are narrow, V-shaped channels that are milled along the edges of individual PCBs. These grooves create a weak point in the PCB, allowing it to be easily snapped apart. V-grooves are typically used for thicker PCBs or when a cleaner edge is required after separation.
| Advantage | Disadvantage |
|---|---|
| Provides a clean edge after separation | More expensive than mouse bites |
| Suitable for thicker PCBs | Requires specialized equipment |
| Ideal for high-density designs | Limited to straight-line separations |
Designing PCBs with breakaway tabs
When designing PCBs with breakaway tabs, there are several factors to consider to ensure optimal performance and manufacturability.
Tab size and spacing
The size and spacing of breakaway tabs can have a significant impact on the ease of separation and the overall strength of the PCB panel. Smaller tabs with closer spacing will result in a weaker connection, making separation easier but potentially compromising the integrity of the panel during handling and manufacturing.
| Tab size | Spacing | Ease of separation | Panel strength |
|---|---|---|---|
| Small | Close | High | Low |
| Small | Wide | Moderate | Moderate |
| Large | Close | Moderate | Moderate |
| Large | Wide | Low | High |
Material considerations
The choice of PCB material can also affect the performance of breakaway tabs. Some materials, such as FR-4, are more brittle and prone to cracking during separation, while others, like polyimide, are more flexible and resistant to damage.
| Material | Brittleness | Flexibility | Suitability for breakaway tabs |
|---|---|---|---|
| FR-4 | High | Low | Moderate |
| Polyimide | Low | High | High |
| Aluminum | Low | Low | Low |
| Ceramic | High | Low | Low |
Panelization layout
The layout of the PCB panel should be optimized to maximize the number of PCBs while ensuring adequate space for breakaway tabs. This may involve adjusting the orientation and placement of individual PCBs to create a more efficient panel design.
| Layout strategy | PCB orientation | Tab placement | Efficiency |
|---|---|---|---|
| Grid | Consistent | Perimeter | High |
| Staggered | Alternating | Perimeter | Moderate |
| Nested | Mixed | Interior | High |
| Custom | Mixed | Mixed | Varies |
Best practices for PCB breakaway tab design
To ensure the best possible results when designing PCBs with breakaway tabs, consider the following best practices:
-
Use a consistent tab size and spacing throughout the panel to ensure even separation and minimize the risk of damage.
-
Choose a PCB material that is well-suited to the specific requirements of your application, considering factors such as brittleness, flexibility, and cost.
-
Optimize the panelization layout to maximize the number of PCBs per panel while providing adequate space for breakaway tabs and any required tooling or handling features.
-
Consider the use of V-grooves for thicker PCBs or applications requiring a cleaner edge after separation.
-
Work closely with your PCB manufacturer to ensure that your design is optimized for their specific production capabilities and constraints.
Frequently Asked Questions (FAQ)
-
What is the difference between mouse bites and V-grooves?
Mouse bites are small, circular perforations drilled or routed along the edges of individual PCBs, while V-grooves are narrow, V-shaped channels milled along the edges. Mouse bites are more cost-effective and suitable for most PCB thicknesses, while V-grooves provide a cleaner edge after separation and are ideal for thicker PCBs or high-density designs. -
Can breakaway tabs be used with any PCB size or shape?
PCB breakaway tabs are versatile and can be used with a wide range of PCB sizes and shapes. However, the specific size and shape of the PCB may influence the choice of tab size, spacing, and placement to ensure optimal performance and manufacturability. -
How do I choose the right tab size and spacing for my PCB design?
The choice of tab size and spacing depends on factors such as the PCB material, thickness, and the desired balance between ease of separation and panel strength. Smaller tabs with closer spacing will make separation easier but may compromise panel integrity, while larger tabs with wider spacing will provide a stronger panel but may make separation more difficult. Consult with your PCB manufacturer for guidance on the optimal tab size and spacing for your specific application. -
Are there any limitations to using PCB breakaway tabs?
While PCB breakaway tabs are a versatile and cost-effective solution for many applications, they may not be suitable for every PCB design. Limitations include the potential for rough edges after separation (particularly with mouse bites), the need for additional processing to achieve a clean edge, and the unsuitability for certain high-density designs. Additionally, V-grooves are limited to straight-line separations and may require specialized equipment, increasing production costs. -
How can I ensure the best results when designing PCBs with breakaway tabs?
To achieve the best results, follow best practices such as using consistent tab size and spacing, choosing a suitable PCB material, optimizing the panelization layout, considering V-grooves for specific applications, and collaborating closely with your PCB manufacturer. By carefully considering these factors and working with experienced professionals, you can create PCB designs that are optimized for performance, manufacturability, and cost-effectiveness.
Conclusion
PCB breakaway tabs, including mouse bites and V-grooves, offer a cost-effective and efficient solution for panelizing PCBs during the manufacturing process. By understanding the advantages, limitations, and best practices associated with breakaway tab design, engineers and PCB designers can create optimized layouts that maximize the number of PCBs per panel, reduce production costs, and ensure ease of separation without compromising PCB quality or functionality. As with any PCB design decision, careful consideration of the specific requirements and constraints of the application, as well as close collaboration with experienced PCB manufacturers, is essential to achieving the best possible results.
