2N5088 Pinout – An All-Inclusive Guide

Introduction to Transistors and the 2N5088

Transistors are fundamental building blocks in modern electronics, acting as switches or amplifiers in a wide range of applications. Among the vast array of transistors available, the 2N5088 stands out as a popular choice for its versatility and reliability. In this comprehensive guide, we will delve into the details of the 2N5088 transistor, focusing on its pinout, characteristics, and practical applications.

What is a Transistor?

A transistor is a semiconductor device that consists of three layers of differently doped materials, forming two junctions: the emitter-base junction and the collector-base junction. By controlling the current flow through these junctions, transistors can amplify, switch, or regulate electrical signals. Transistors come in two main types: bipolar junction transistors (BJTs) and field-effect transistors (FETs).

The 2N5088 Transistor

The 2N5088 is an NPN bipolar junction transistor designed for general-purpose amplification and switching applications. It is known for its high current gain, low saturation voltage, and excellent switching characteristics. The 2N5088 is widely used in audio amplifiers, power supplies, Motor Controllers, and digital logic circuits.

2N5088 Pinout and Package

2N5088 Pinout

The 2N5088 transistor comes in a TO-92 package, which is a small plastic package with three leads. The pinout of the 2N5088 is as follows:

It is essential to identify the correct pinout when using the 2N5088 in a circuit to ensure proper functionality and avoid damage to the device or other components.

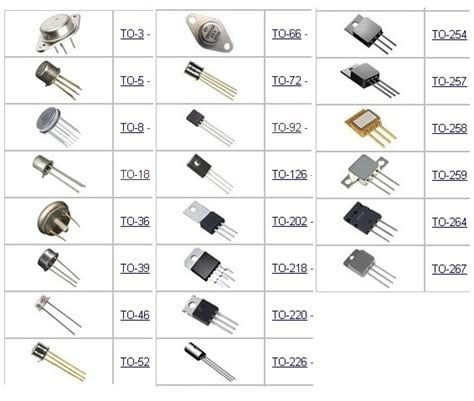

TO-92 Package

The TO-92 package is a widely used transistor package due to its compact size and ease of handling. The package consists of a plastic body with three leads extending from the bottom. The leads are typically arranged in a triangular pattern, with a lead spacing of 0.1 inches (2.54 mm).

The TO-92 package provides several advantages:
– Compact size, allowing for high-density circuit designs
– Good Thermal dissipation characteristics
– Easy to handle and solder
– Low cost compared to other package types

However, the TO-92 package has some limitations, such as limited power handling capability and reduced heat dissipation compared to larger packages like the TO-220.

2N5088 Electrical Characteristics

To effectively use the 2N5088 transistor in a circuit, it is crucial to understand its electrical characteristics. The following table summarizes the key parameters of the 2N5088:

These parameters help designers determine the suitability of the 2N5088 for specific applications and ensure proper biasing and operation within the device’s limits.

DC Current Gain (hFE)

The DC current gain, also known as hFE, is a crucial parameter that indicates the transistor’s amplification capability. It is defined as the ratio of the collector current (IC) to the base current (IB) when the transistor is operating in the active region. The 2N5088 has a typical hFE range of 100-300, making it suitable for a wide range of amplification and switching applications.

Collector-Emitter Saturation Voltage (VCE(sat))

The collector-emitter saturation voltage, VCE(sat), is the voltage drop across the transistor when it is fully saturated (turned on). A lower VCE(sat) is desirable for efficient switching and reduced power dissipation. The 2N5088 has a typical VCE(sat) of 0.3 V at a collector current of 10 mA, making it a good choice for low-voltage switching applications.

Biasing the 2N5088 Transistor

Proper biasing is essential for transistors to operate in the desired region (active, saturation, or cutoff) and achieve the intended functionality. There are several biasing configurations for the 2N5088, each with its own advantages and disadvantages.

Fixed Bias

In a fixed bias configuration, the base voltage is set by a voltage divider network, and the base current is determined by a resistor connected between the base and ground. This configuration is simple but lacks stability against temperature variations and beta (hFE) changes.

Emitter Bias

Emitter bias, also known as self-bias, uses a resistor connected between the emitter and ground to provide negative feedback and stabilize the operating point. This configuration offers improved stability compared to fixed bias but requires careful selection of the emitter resistor value.

Voltage Divider Bias

Voltage divider bias combines the benefits of fixed bias and emitter bias by using a voltage divider network to set the base voltage and an emitter resistor for stabilization. This configuration provides good stability and allows for easy adjustment of the operating point.

When biasing the 2N5088, it is essential to consider the following factors:
– Desired operating region (active, saturation, or cutoff)
– Collector current and voltage requirements
– Power dissipation limits
– Temperature stability and beta variations

By selecting the appropriate biasing configuration and component values, designers can optimize the performance and reliability of the 2N5088 in their specific application.

2N5088 Applications

The 2N5088 transistor finds use in a wide range of electronic applications due to its versatility and excellent performance characteristics. Some common applications include:

Audio Amplifiers

The 2N5088 is well-suited for audio amplification circuits, such as preamplifiers and power amplifiers. Its high current gain and low noise characteristics make it an excellent choice for these applications. The 2N5088 can be used in various amplifier topologies, such as common emitter, common collector, and push-pull configurations.

Switching Circuits

The 2N5088’s fast switching speed and low saturation voltage make it ideal for use in switching circuits, such as power supplies, motor controllers, and digital logic gates. In these applications, the transistor is often used as a switch to control the flow of current through a load, such as a relay, LED, or motor.

Temperature Sensing

The 2N5088 can be used as a temperature sensor by exploiting the temperature dependence of its base-emitter voltage (VBE). By biasing the transistor with a constant collector current and measuring the VBE, temperature changes can be detected and used for control or monitoring purposes.

Voltage Regulation

The 2N5088 can be employed in voltage regulation circuits, such as series and shunt regulators. In a series regulator, the transistor is used as a variable resistor to control the output voltage, while in a shunt regulator, it is used to divert excess current away from the load to maintain a constant voltage.

2N5088 Substitutes and Alternatives

In some cases, the 2N5088 may not be readily available, or a different transistor with similar characteristics may be required. Some common substitutes and alternatives for the 2N5088 include:

• 2N3904: A general-purpose NPN transistor with similar characteristics to the 2N5088. It is widely available and can be used in most applications that call for a 2N5088.

• BC547: Another popular NPN transistor that can serve as a substitute for the 2N5088. It has a slightly lower current gain and power dissipation rating but is suitable for most low-power applications.

• 2N2222: A classic NPN transistor that has been in use for decades. It has a higher current capability than the 2N5088 but a lower maximum collector-emitter voltage rating.

When selecting a substitute or alternative, it is essential to compare the key parameters, such as current gain, voltage ratings, and power dissipation, to ensure compatibility with the intended application.

Frequently Asked Questions (FAQ)

1. What is the difference between a 2N5088 and a 2N3904 Transistor?

The 2N5088 and 2N3904 are both general-purpose NPN transistors with similar characteristics. However, the 2N5088 has a slightly higher current gain and power dissipation rating compared to the 2N3904. In most applications, these transistors can be used interchangeably.

2. Can the 2N5088 be used in a high-power amplifier?

The 2N5088 is designed for low to medium power applications, with a maximum power dissipation of 625 mW. For high-power amplifiers, transistors with higher power ratings, such as the 2N3055 or TIP41, are more suitable.

3. How do I identify the pins on a 2N5088 transistor?

The 2N5088 has three pins: emitter (Pin 1), base (Pin 2), and collector (Pin 3). When viewed from the bottom of the TO-92 package, with the leads facing towards you, the pinout is as follows: Emitter (left), Base (middle), Collector (right).

4. What is the maximum collector current for the 2N5088?

The maximum continuous collector current for the 2N5088 is 100 mA. However, it is essential to consider the power dissipation limits and ensure proper heat sinking when operating the transistor at high currents.

5. Can I replace a 2N5088 with a PNP transistor?

No, the 2N5088 is an NPN transistor, and it cannot be directly replaced with a PNP transistor. NPN and PNP transistors have different polarities and require different biasing and circuit configurations. If a PNP transistor is required, a suitable alternative, such as the 2N3906, should be used.

Conclusion

The 2N5088 is a versatile and reliable NPN transistor that finds use in a wide range of electronic applications, from audio amplifiers to switching circuits and temperature sensing. By understanding its pinout, electrical characteristics, and biasing requirements, designers can effectively incorporate the 2N5088 into their projects and optimize its performance.

This comprehensive guide has covered the essential aspects of the 2N5088 transistor, including its package, pinout, key parameters, biasing configurations, and common applications. By following the information provided here, readers should be well-equipped to use the 2N5088 in their electronic designs and troubleshoot any issues that may arise.

As with any electronic component, it is crucial to adhere to the manufacturer’s specifications and design guidelines to ensure proper functioning and longevity of the 2N5088 transistor. By selecting the appropriate biasing, observing power dissipation limits, and providing adequate heat sinking, designers can maximize the performance and reliability of their circuits using the 2N5088.
